STEDI Type-X™ Sport Plus 7 Inch LED Driving Lights Silver Edition (Single) - ST-01-SRT-704
Brand: STEDI Lights
Product ID: 58964
SKU: ST-01-SRT-704
$275.00 (Each)
Supply Only Price.
Estimate Shipping
REIMAGINED FOR THE OPEN ROAD.
Introducing the STEDI™ Type-X Sport Plus Silver Edition. One of STEDI’s most popular high-performance driving lights on the market, now presented in a stunning liquid-silver DuPont powder coat finish. Proven off the beaten track, reimagined for the open road – the Sports Plus Silver edition is designed specifically for truck and heavy vehicle industries, incorporating state-of-the-art technology and modern aesthetics to create a refined LED driving light that yet again sets a new standard.
SILVER. BULLET.

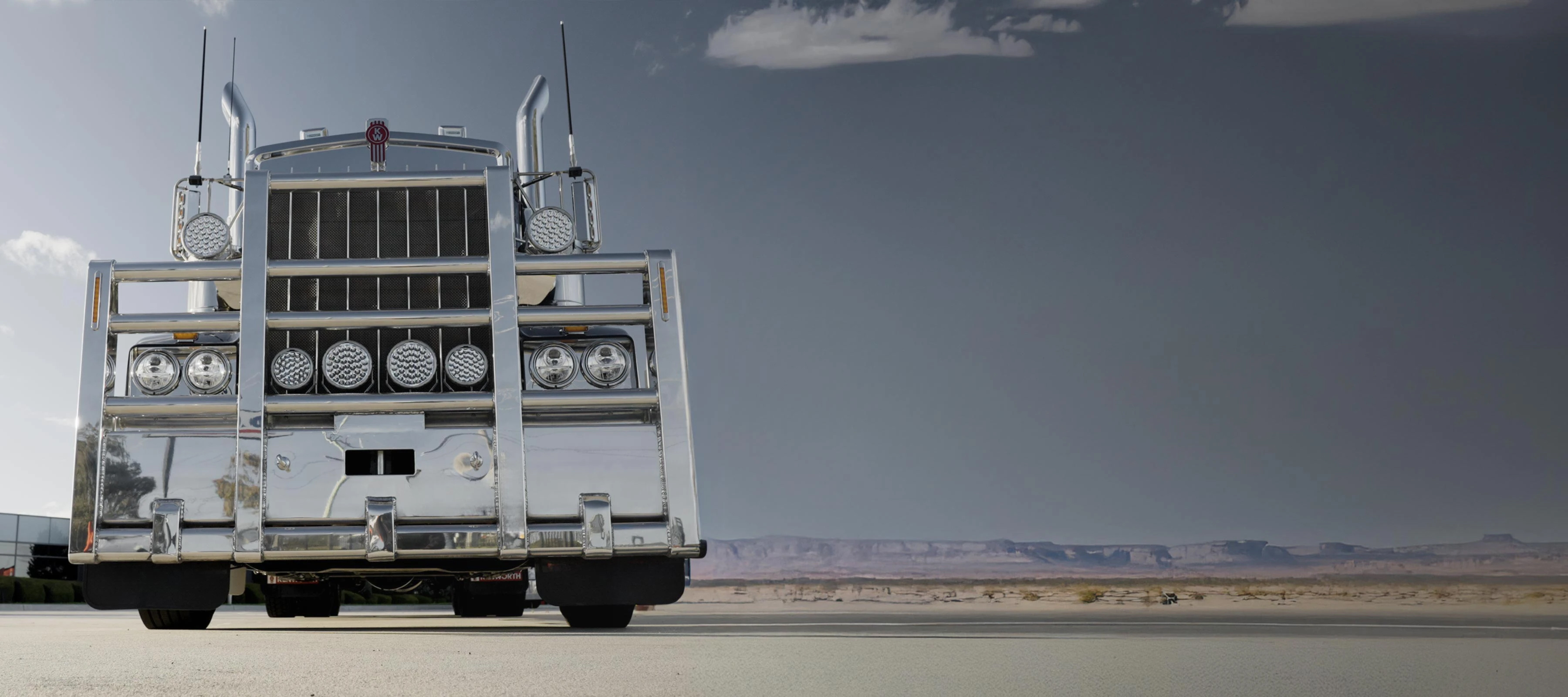

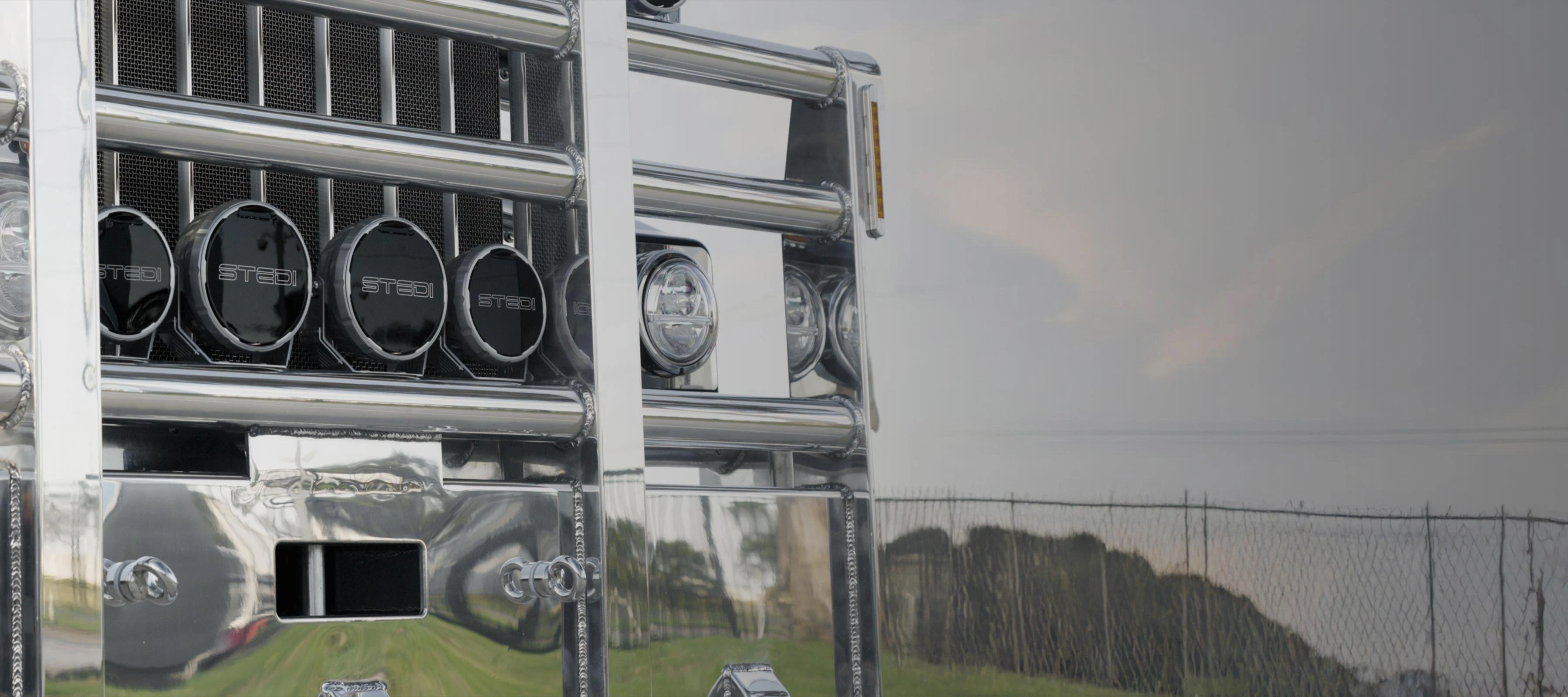

An evolution of the Type-X Sport Plus, the Silver Edition has been meticulously designed to blend fluidly into the reflective chrome bar-work of Australia’s most prestigious trucks and haulers. The DuPont powder coat finish has been uniquely customised to capture and reflect light, effortlessly integrating with your truck’s front-end design while providing all the protection benefits of powder coat finishing – guaranteeing optimal performance and extending the lifespan of your light. Engineered with a precision Cast aluminium body and a hardened polycarbonate lens, the Sport Plus Silver Edition achieves a robust IP68 rating against dust and water – which when combined with the liquid-silver DuPont powder coating delivers a light that stands up to the demands of the trucking community.
PLUS DISTANCE. PLUS FLOOD.
Type-X Sport Plus Silver Edition delivers next-gen performance in beam distance and flood output. Both the 7 and 8.5 inch size variants will throw light well over 1km down the road while providing more flood through the critical zones of the road. The integrated wide-beam optics ensure excellent near-field illumination, blending seamlessly to eliminate hot spots and provide a smooth driving beam.

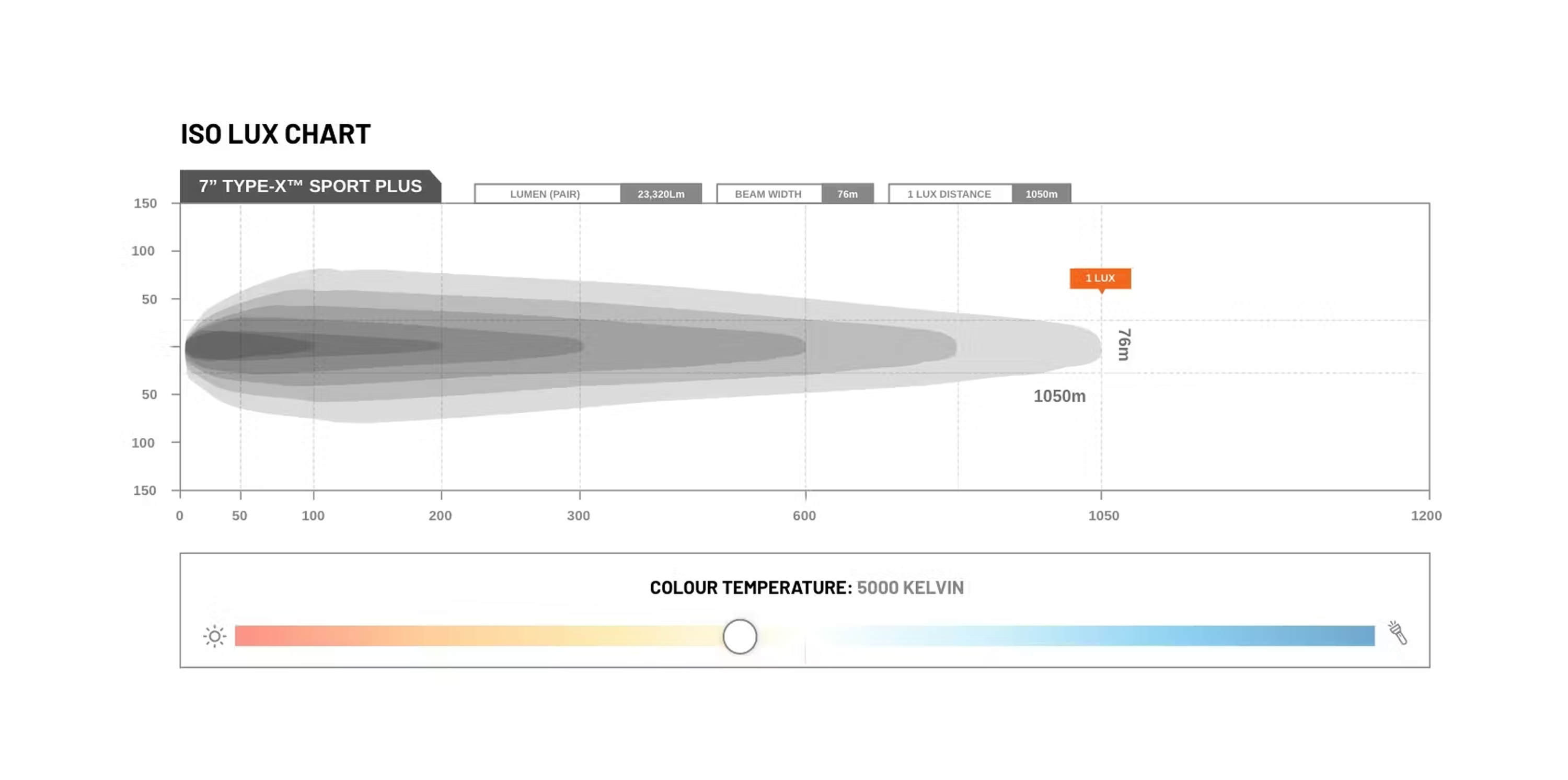

Lux Graph
Night Shots

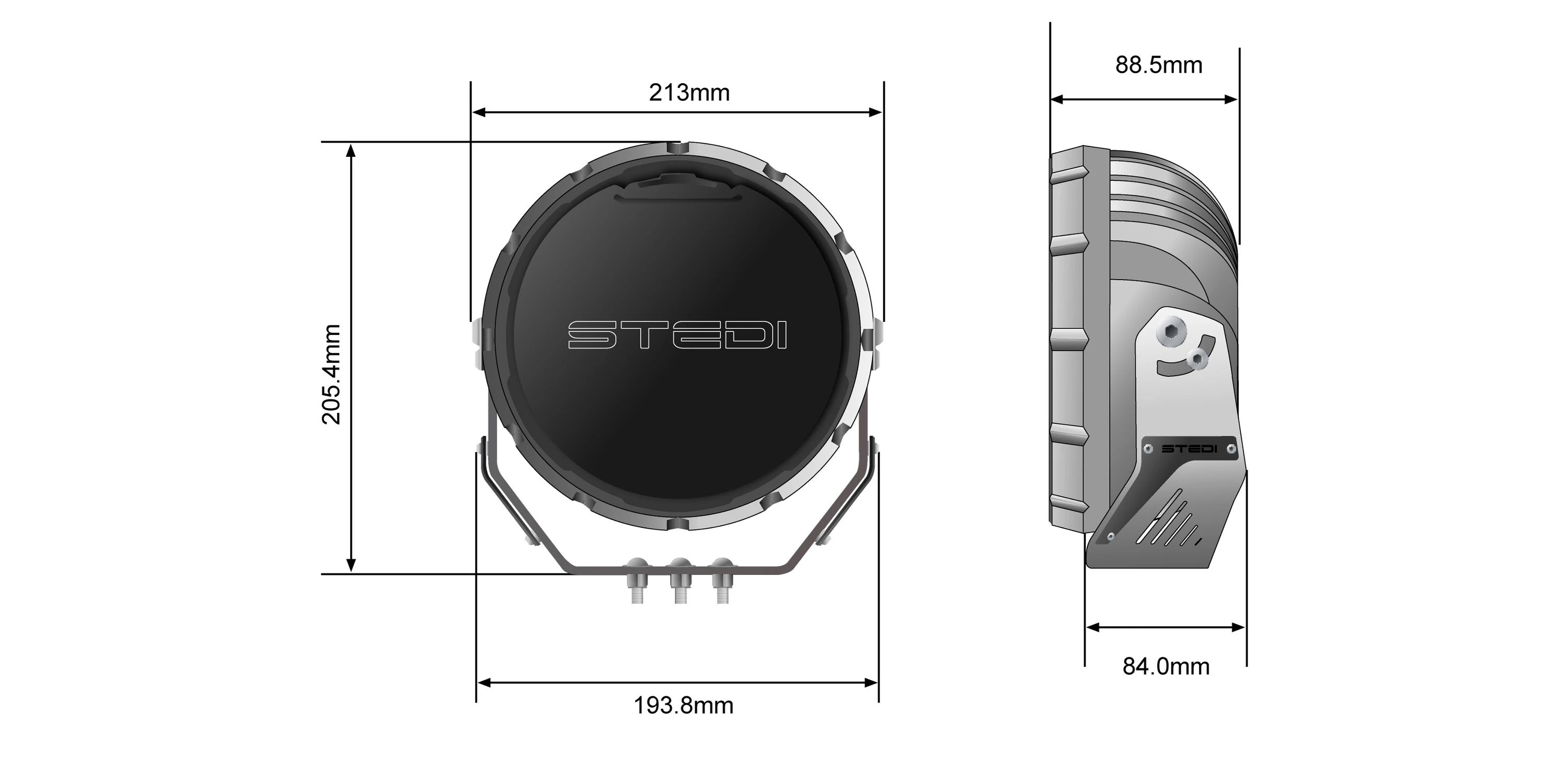

Diamensions
THE NITTY-GRITTY.

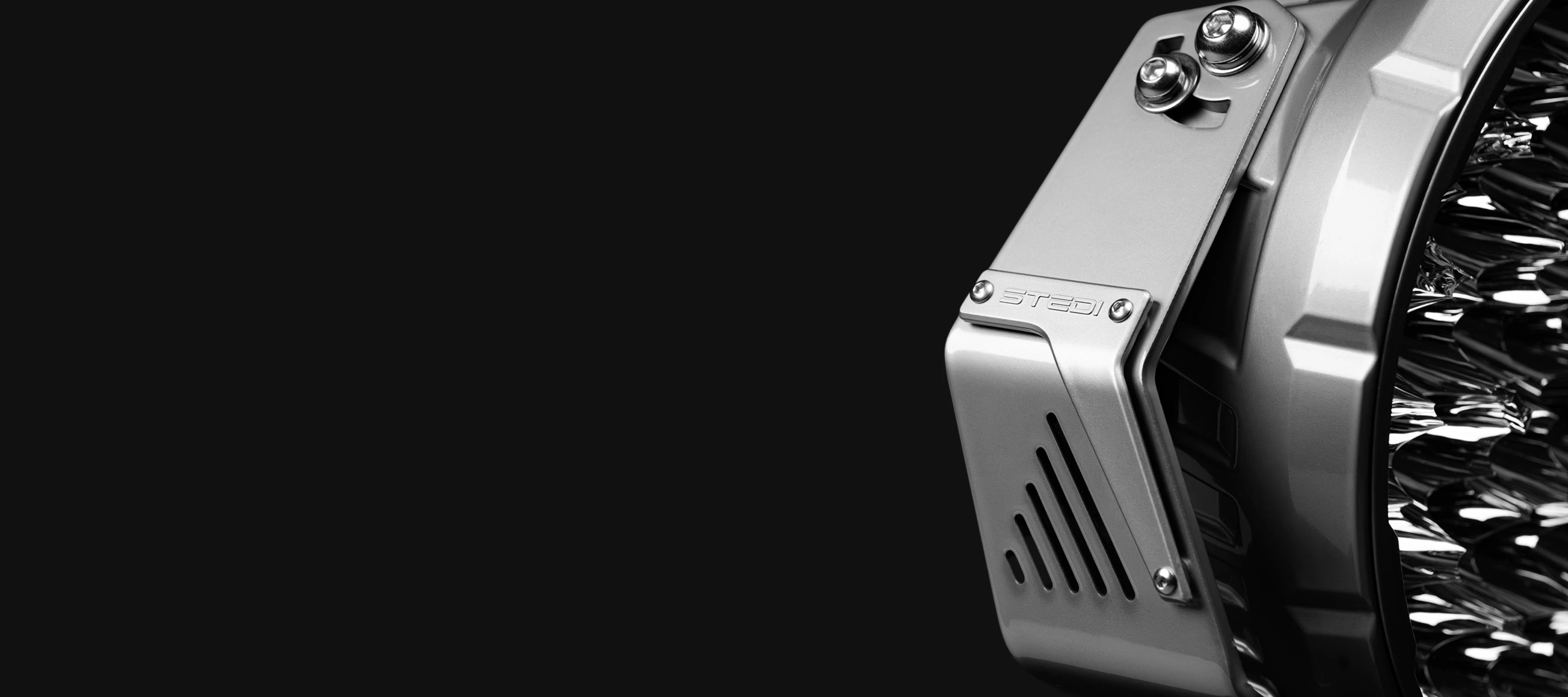

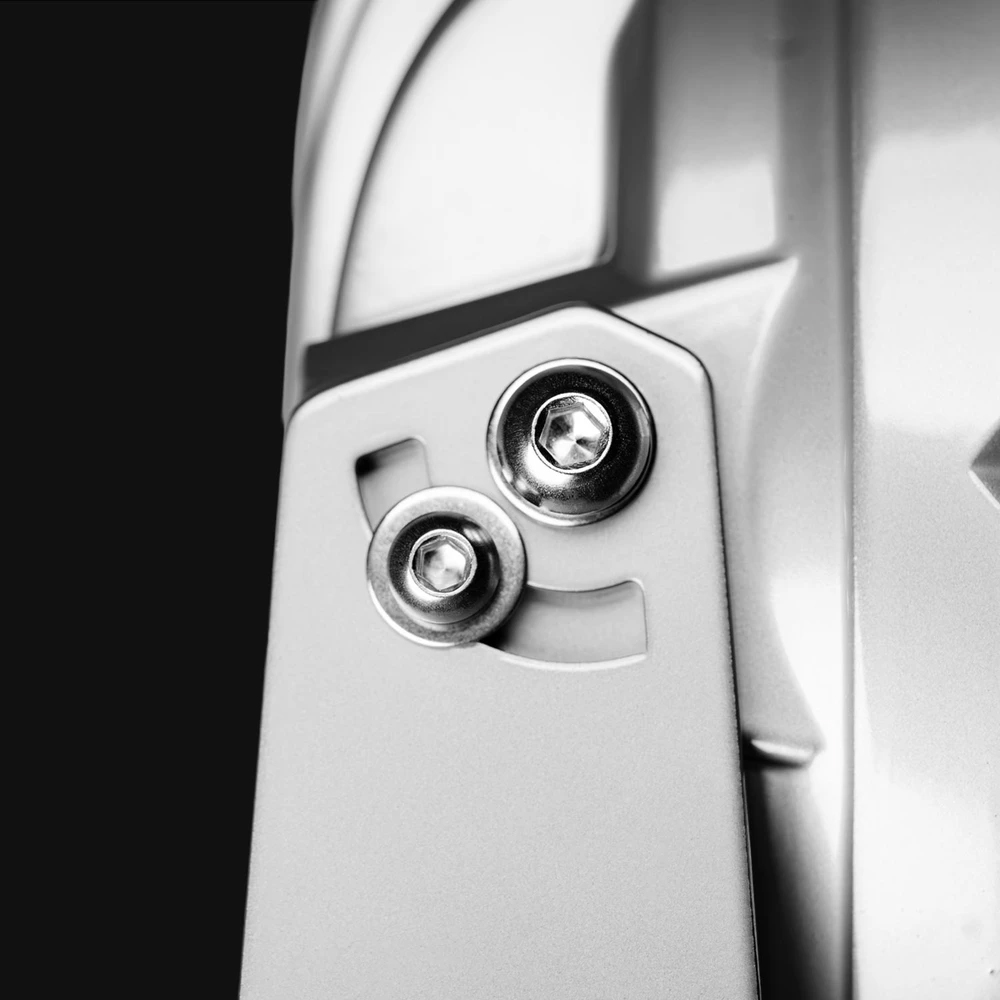

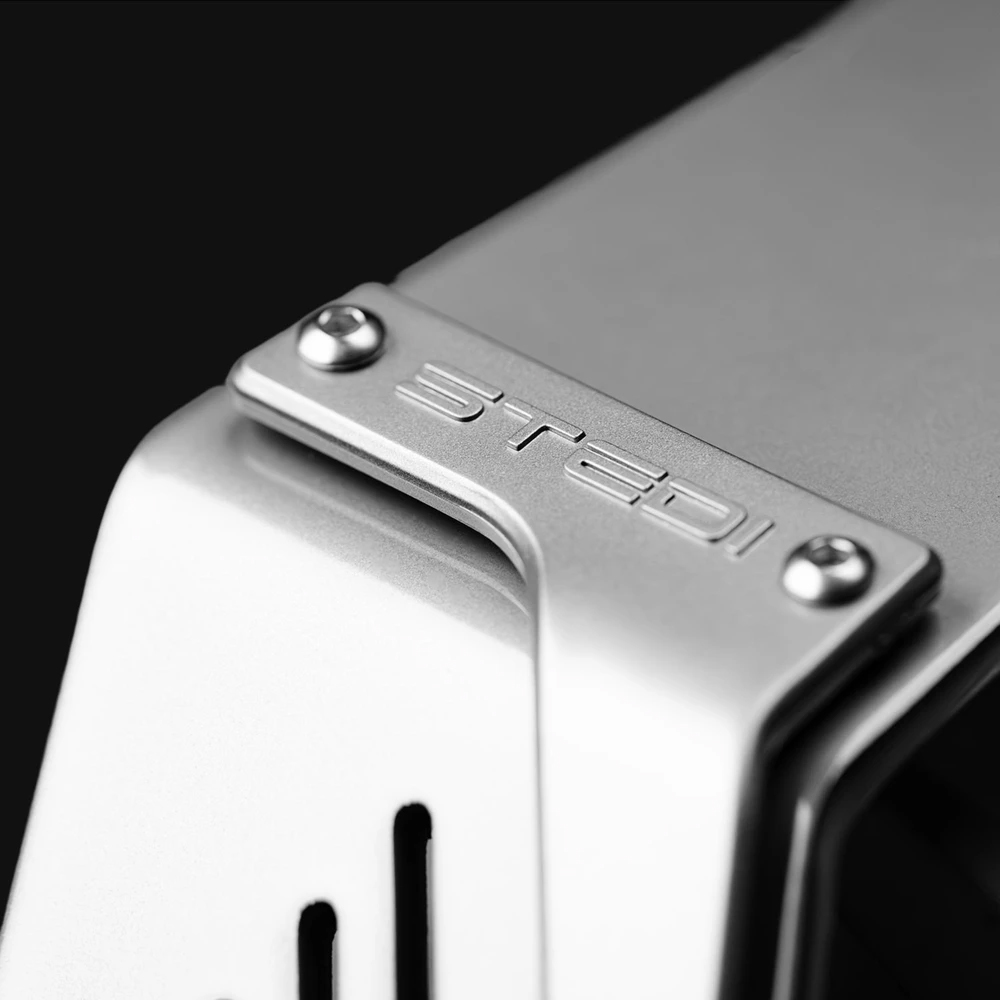

- 4mm thick 304 series stainless mounting bracket, which includes a rubber dampener and an additional 3mm upper plate.

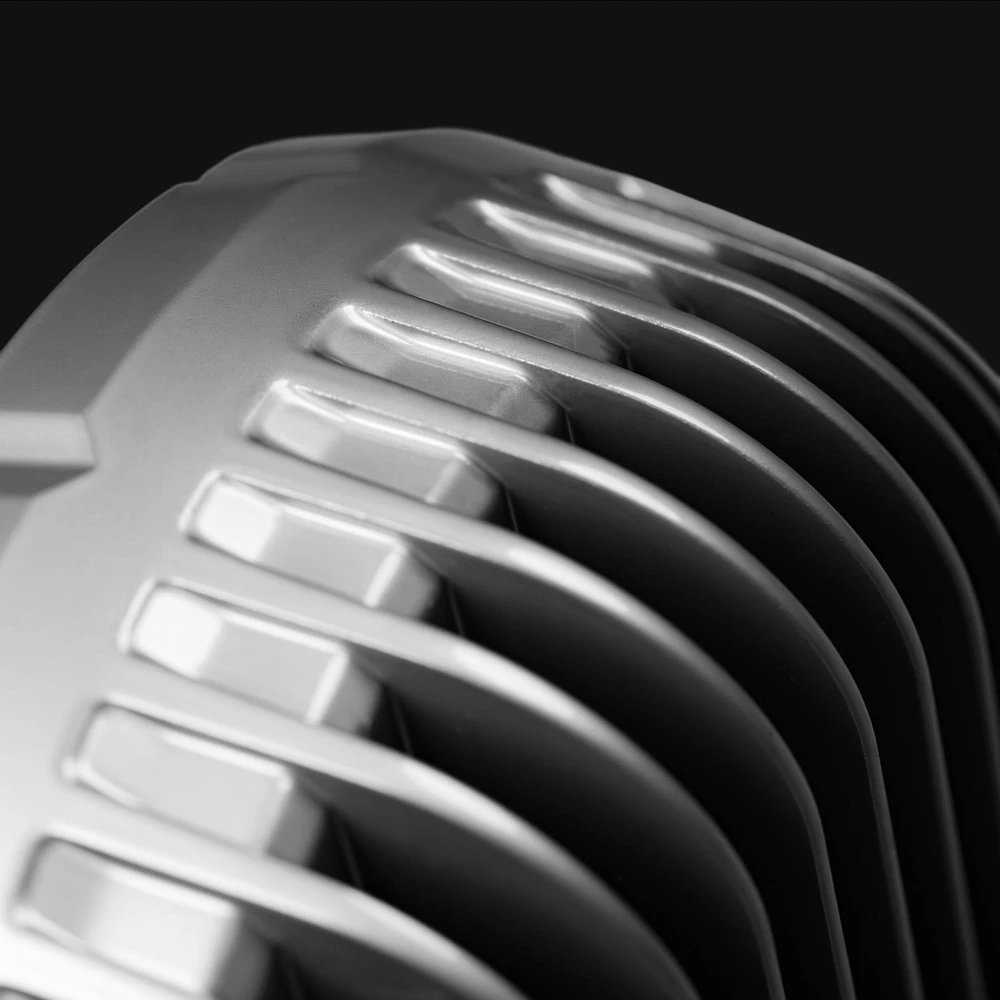

- Cast aluminium housing for superior strength and corrosion resistance.
- GE Lexan lens with hard coating for virtually unbreakable scratch resistance.
- DuPont UV and abrasion-resistant powder coat.
- IP68 rated – dust & particle tight, waterproof up to 3 meters.
- Nitto Denko pressure equalisation vent with membrane to protect against water ingress, dust & contaminants.
- Environmentally sealed Deutsch® DTP-2 connector.
- EMI & RFI suppression circuitry.
- Combination of OSRAM P8 & CREE XP20s LEDs for unprecedented clarity.

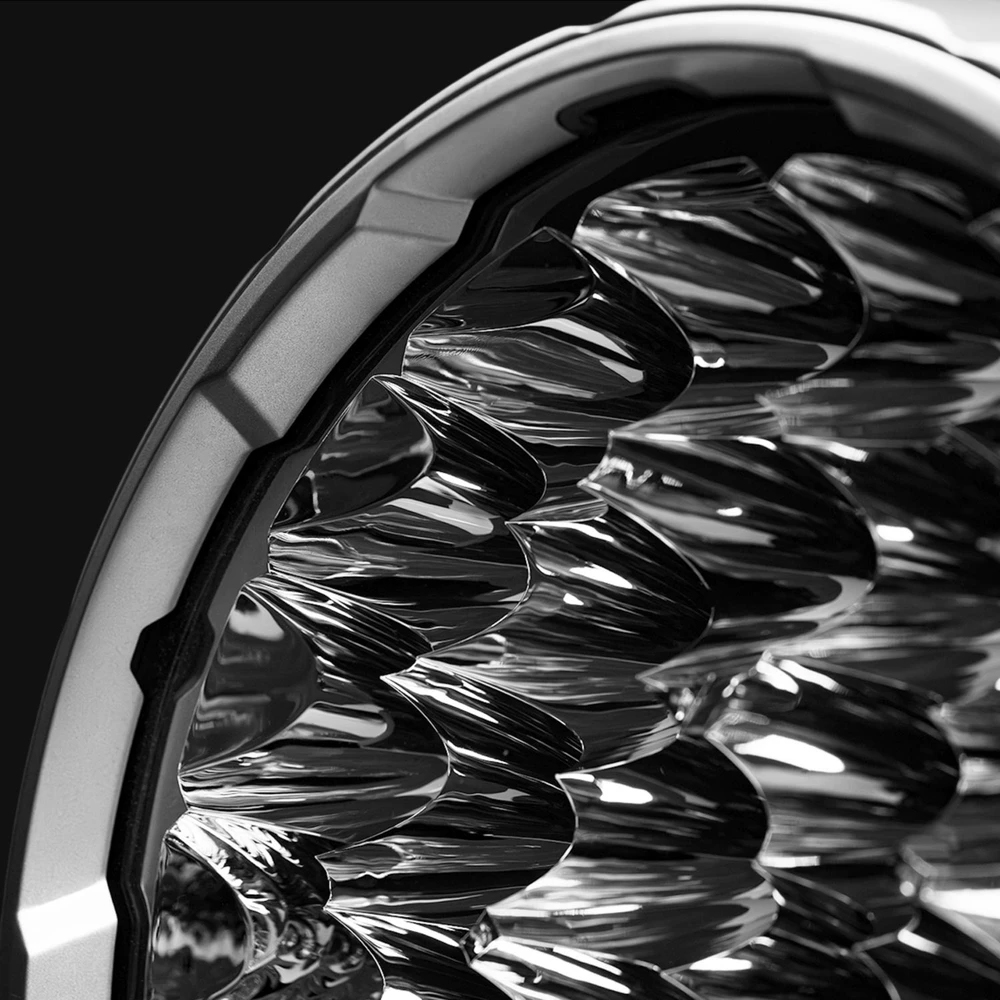

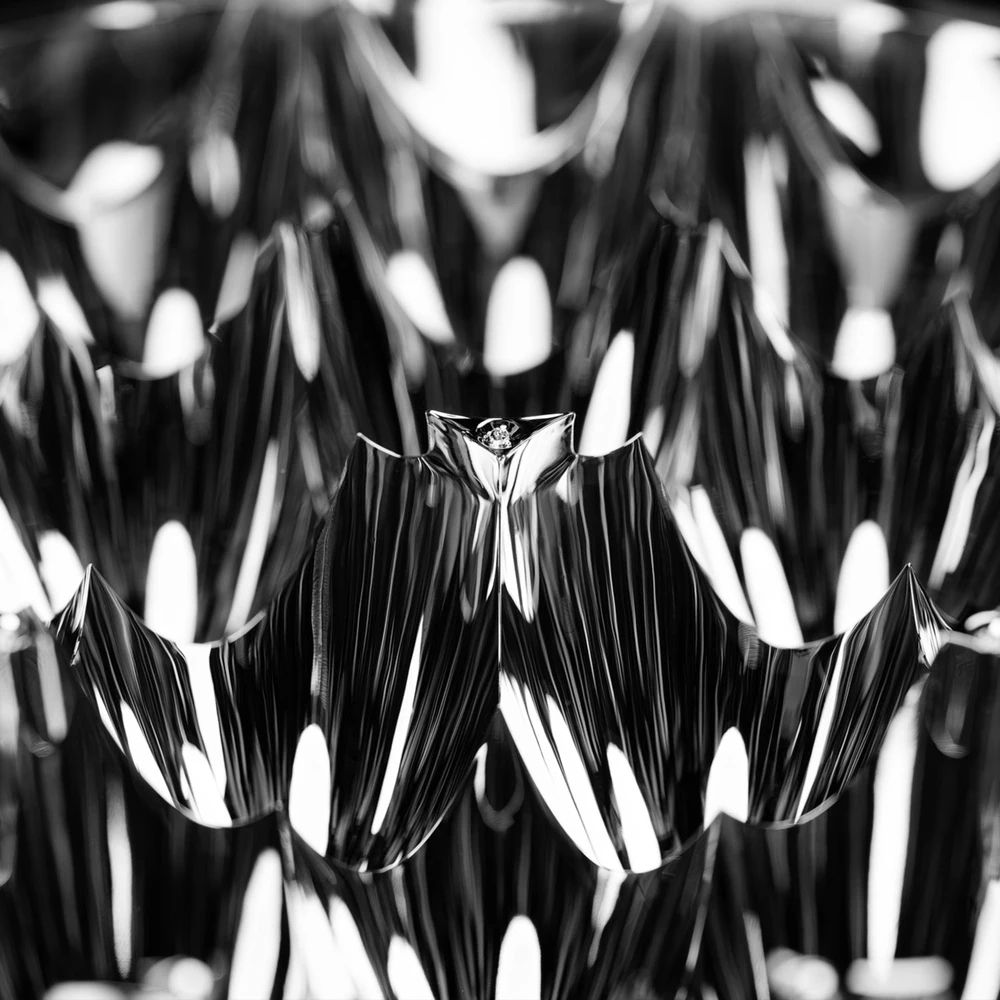

- Four wide-beam reflectors for a lateral-shaped flood pattern.
- 5000K CCT offers stunning clarity and definition with an excellent Colour Rendering Index (CRI).
TECH SPECS
| LED | 30x OSRAM™ + 7x CREE LEDs |
|---|---|
| RAW LUMENS | 14,000 Lm (each) |
| TESTED LUMENS | 11,660 Lm (each) |
| AMP DRAW | 9.0A @ 12v (each) |
| POWER DRAW | 108W (each) |
| CANDELA | 1,067,828 cd (Pair) |
| BEAM PATTERN | Combo (33 Spot + 4 Flood) |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5000K |
| VOLTAGE COMPATIBILITY | 10v & 30v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 2.24kg (each) |
| OPERATING TEMP | -40°C - 60°C |
| PHOTOMETRIC DATA | |
| 730 m | 1 Lx (Single) |
| 1,192 m | 1 Lx (Pair) |
WHAT'S INCLUDED
- 1 x STEDI™ 7" Type-X™ Sport Plus Silver Edition LED Driving Light

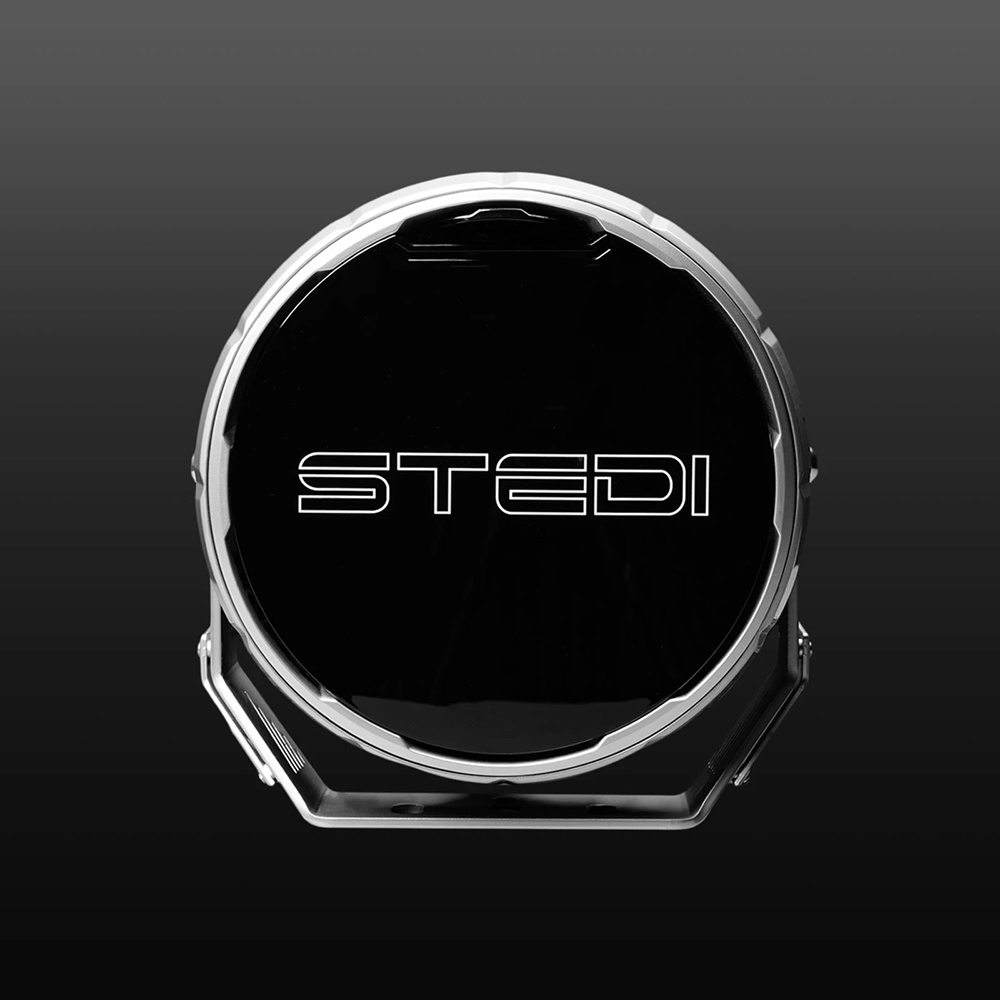

- 1 x Protective STEDI™ Blackout Covers
- 1 x Silver Coloured Fascia
- 1 x Black Coloured Fascia
- 2 x Silver Coloured Shoulder Trims
- 2 x Black Coloured Shoulder Trims
- 1 x Fascia Key Tool
- 1 x STEDI™ Smart High Beam Wiring Harness
- 1 x Stainless Steel Mounting Brackets
- 1 x Bracket Shock Dampeners
