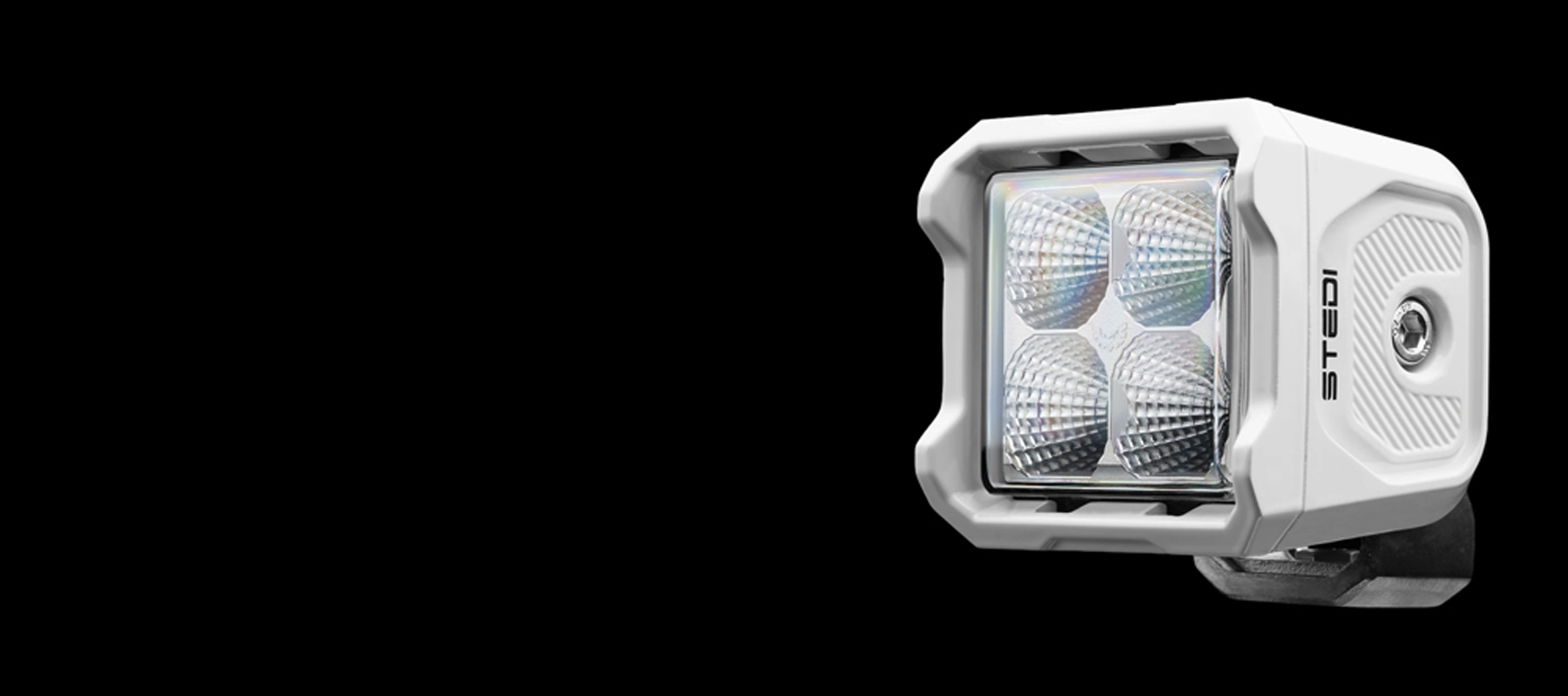

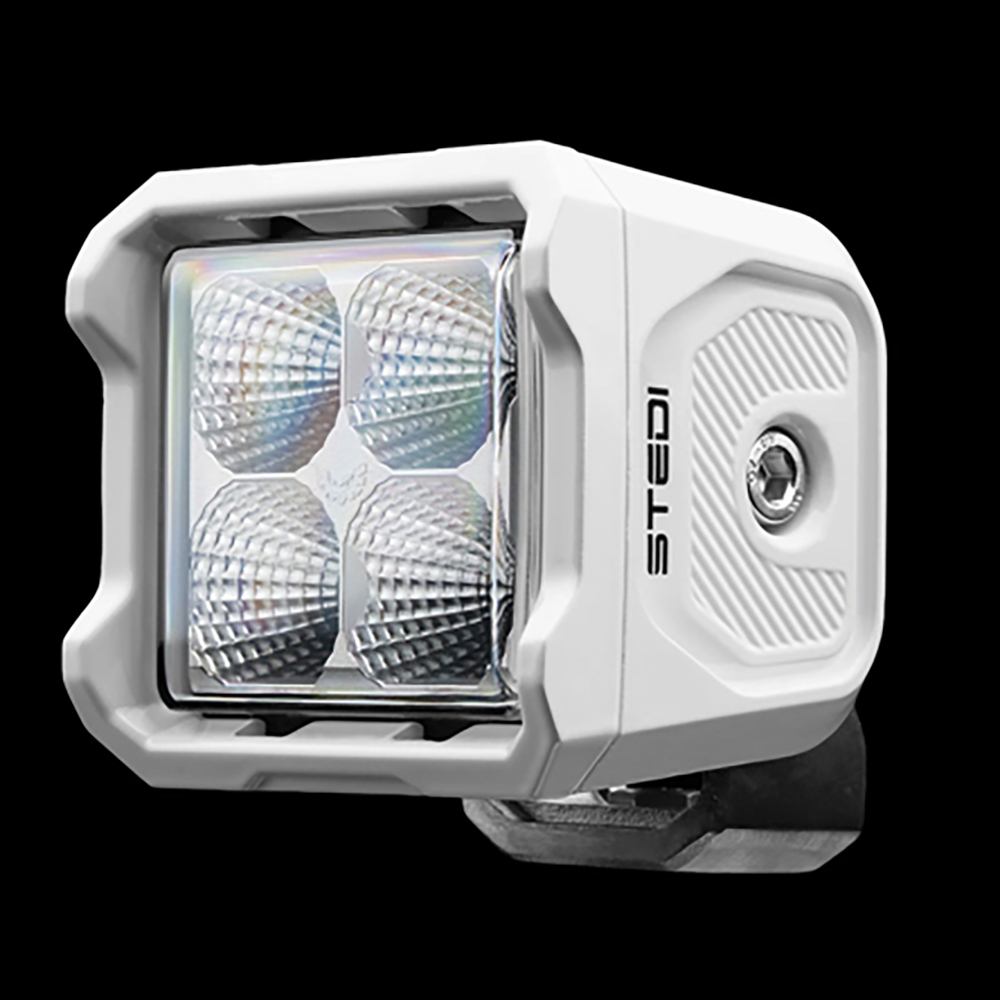

STEDI G4 Marine Flood Work Light - ST-07-G4-002
Brand: STEDI Lights
Product ID: 59858
SKU: ST-07-G4-002
$109.00 (Each)
Supply Only Price.
Estimate Shipping

Full Force.
Delivering a harmonious diffused illumination of 60º, the STEDI™ G4 Marine — Flood produces a deep flood beam best suited to situations that require a wide lateral throw of light across the horizon such as port and starboard applications. Achieving the highest IP69K ingress protection and CISPR 25 C3 certification, the G4 is built to last with 316 stainless steel fasteners and bracket, tin cabling, and heavy duty marine-grade powder coating.

Sea Beyond.

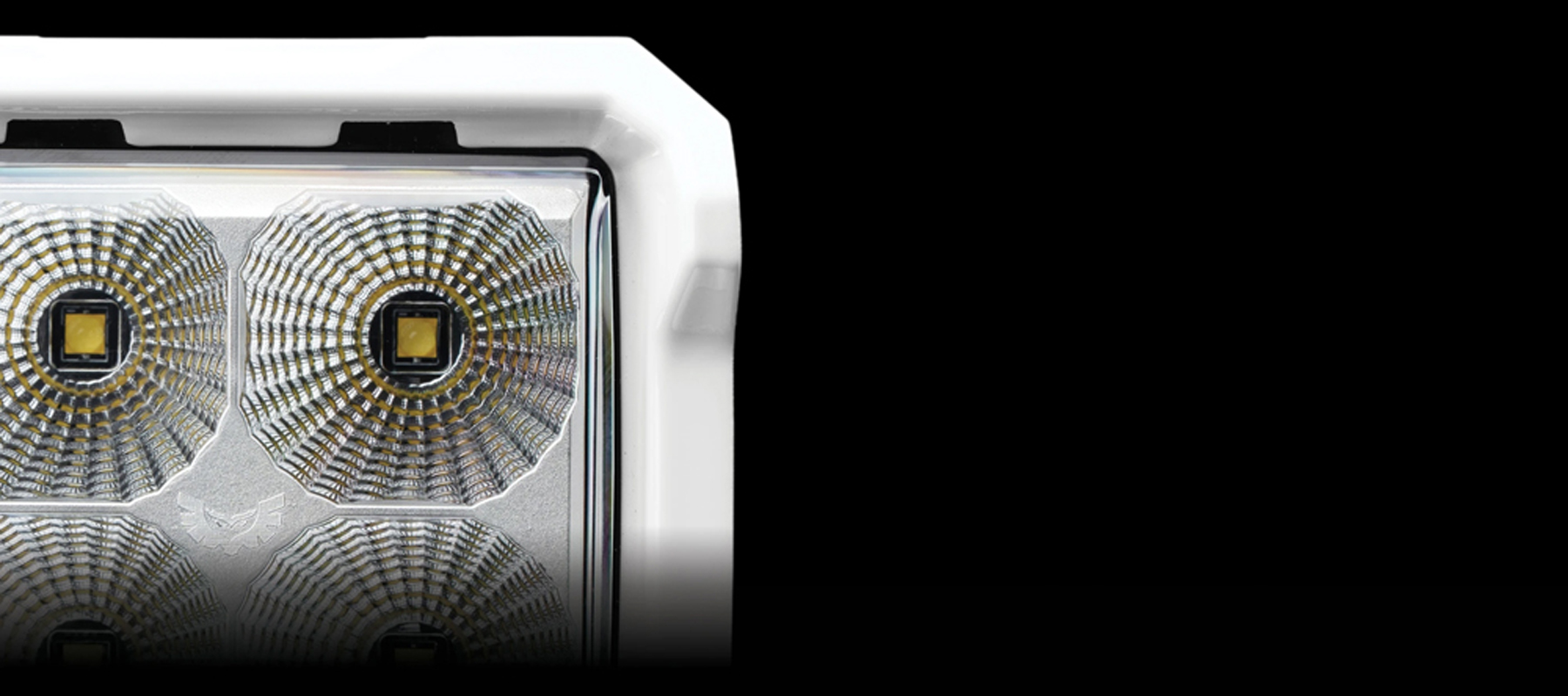

Engineered with advanced CREE XP-L2 LED technology, the G4 Marine — Flood produces a powerful, smooth light beam that reaches over 81 metres in length, while an all new optic configuration radiates a flood-lit zone 40 metres wide — ensuring the critical near field is illuminated with a full, 5700K light.

A Force Of Nature.
The STEDIâ„¢ G Series delivers unmatched durability with an IP69K rating for complete dust and waterproof protection and CISPR 25 C3 certification to prevent electromagnetic interference, ensuring peak performance even in the harshest environments.

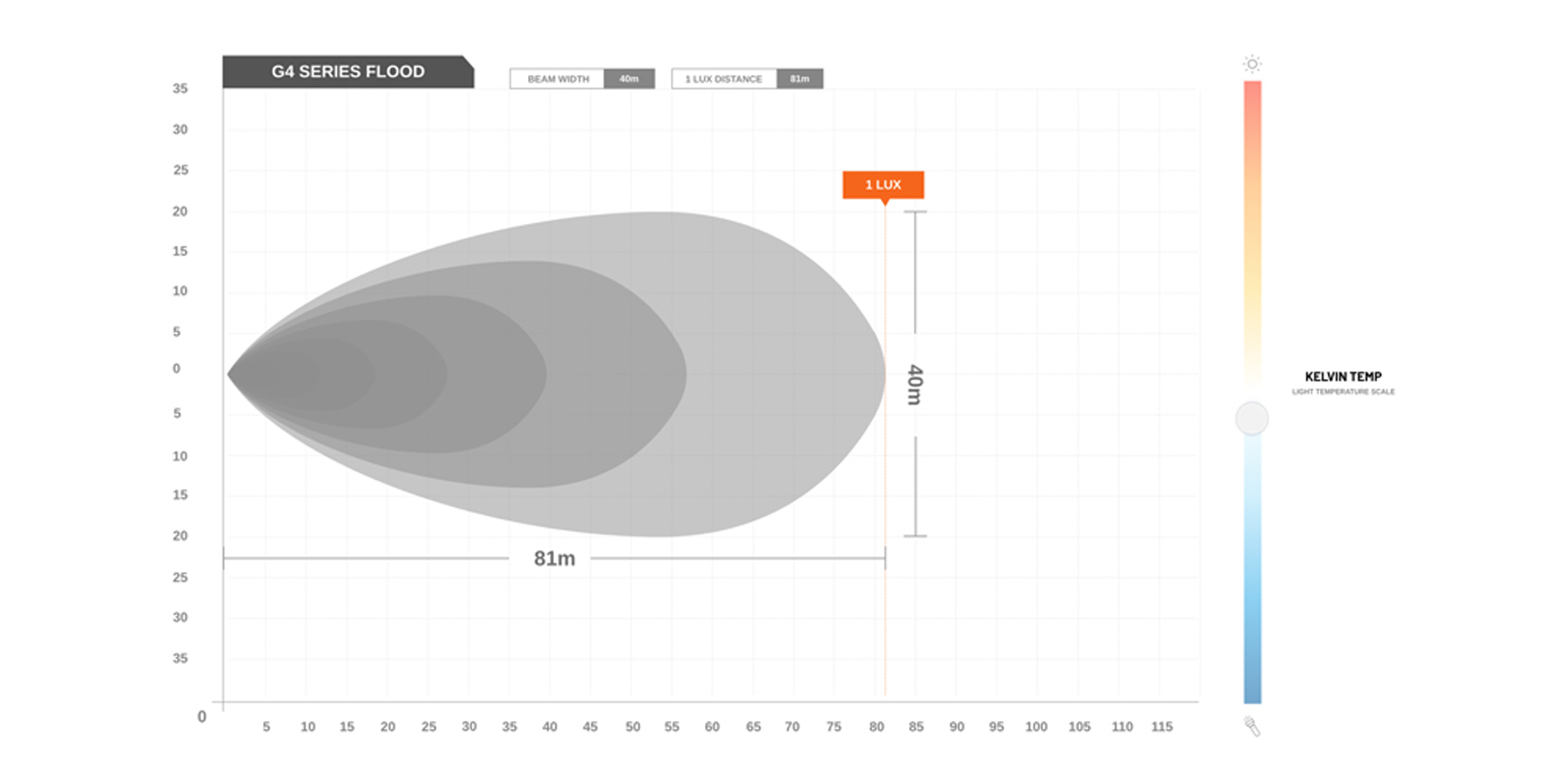

LUX GRAPH

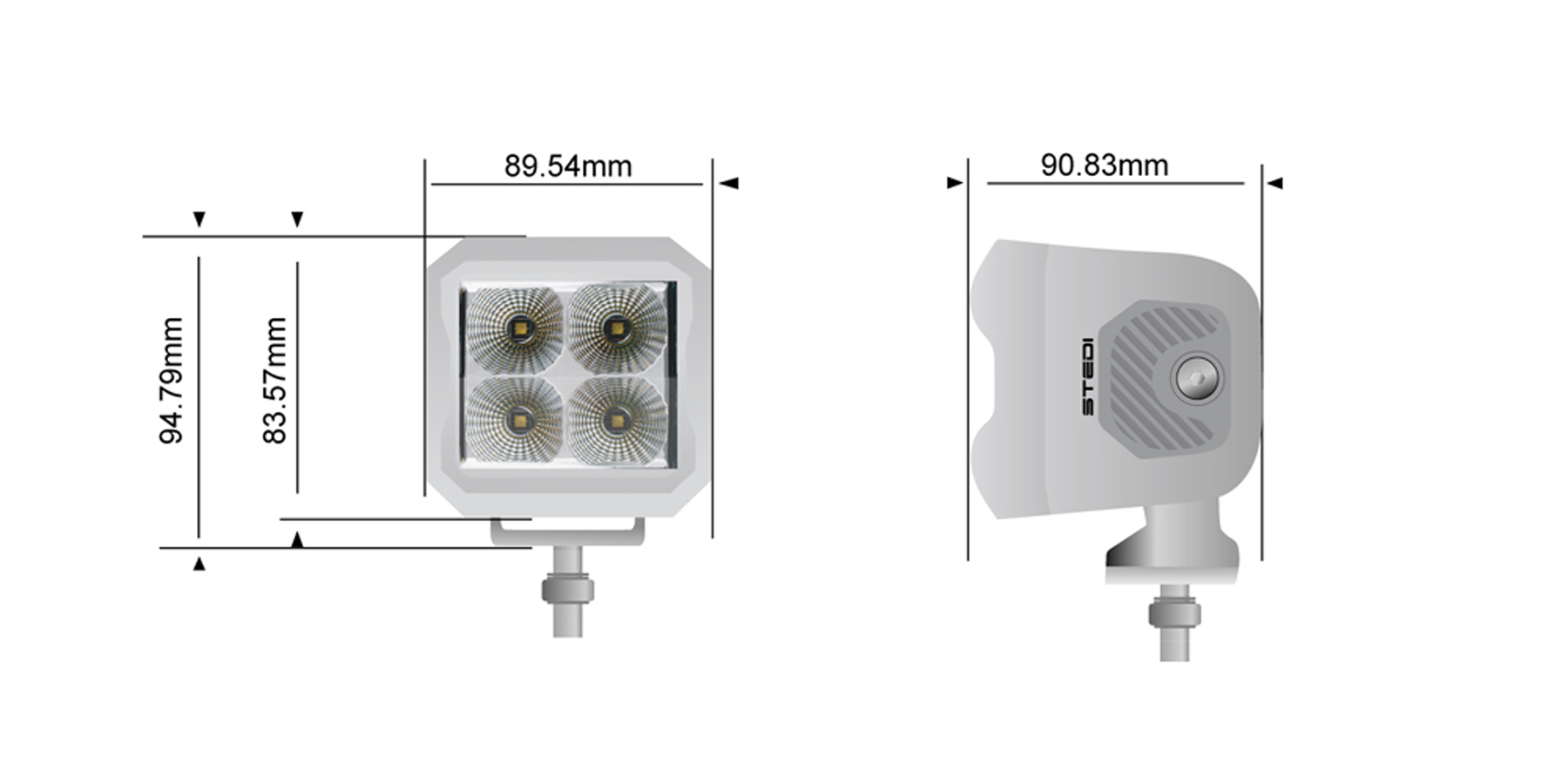

DIMENSIONS

THE NITTY-GRITTY.
Feel the full force of the STEDI™ G4 Marine — Flood. Delivering a harmonious diffused illumination of 60º, the wide beam produces a deep flood beam best suited to situations that require a wide lateral throw of light across the horizon such as port and starboard applications. Achieving the highest IP69K ingress protection and CISPR 25 C3 certification, the G4 is built to last with 316 stainless steel fasteners and bracket, tin cabling, and heavy duty marine-grade powder coating.??Engineered with advanced CREE XP-L2 LED technology, the G4 Marine — Flood produces a powerful, smooth light beam that reaches over 81 metres in length, while an all new optic configuration radiates a flood-lit zone 40 metres wide — ensuring the critical near field is illuminated with a full, 5700K light. The colour temperature has been enhanced to deliver a brilliant white light while reducing glare and eye strain, ensuring you can focus on the task at hand without compromise.??Pushed to the limit, the STEDI™ G Series sets a new standard in marine light durability. Punished through advanced vibration and shock testing, the entire G-Series achieves the highest possible IP69K rating — guaranteeing that each light is completely dust-proof and waterproof even in high-pressure and temperature environments. The CISPR 25 C3 certification ensures electromagnetic interference is suppressed, protecting sensitive onboard receivers like AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. When it comes to durability, the G-Series is in a class of its own.
- 4x CREE XP-L2 LEDs
- IP69K Rated
- CISPR 25 C3 Certified
- Shock tested at over 30Gs of Force & Vibration tested at over 5Gs of force for over 30 hours over 3 axis of motion
- 1 LUX @ 81m Length
- 1 LUX @ 40m Width
- STEDIâ„¢ Cover Included
- Stainless Steel Hardware & Bracket Included
- Tinned Cabling
- Isolated Earth
- Heavy Duty Marine-Grade Powder Coat
TECH SPECS
| LED POWER OUTPUT | 4 x 10w LED |
|---|---|
| LUMENS RAW | 4000LM |
| LUMENS TESTED | 3000LM |
| OPERATING VOLTAGE | 12v & 24v Compatibility |
| IP RATING | IP69K |
| CISPR RATING | R25 C3 |
| LED | CREE XP-L2 |
| 1 LUX (METRES) | 81m |
| COLOUR TEMPERATURE (CCT) | 5700K |
| MATERIAL | Die Cast Aluminium Housing |
| LENS | Polycarbonate |
| BOLTS AND FITTINGS | Included |
| BEAM TYPE | Flood |
| LIFE SPAN | 50,000 Hours |
| AMP DRAW | 3.2A @ 13.5v |
| WEIGHT | 1.000kg |

WHAT'S INCLUDED
- 1 x STEDIâ„¢ G4 Marine Flood Light
- 1 x STEDIâ„¢ White Cover
- 1 x Stainless Steel Hardware
- 1 x Stainless Steel Bracket
