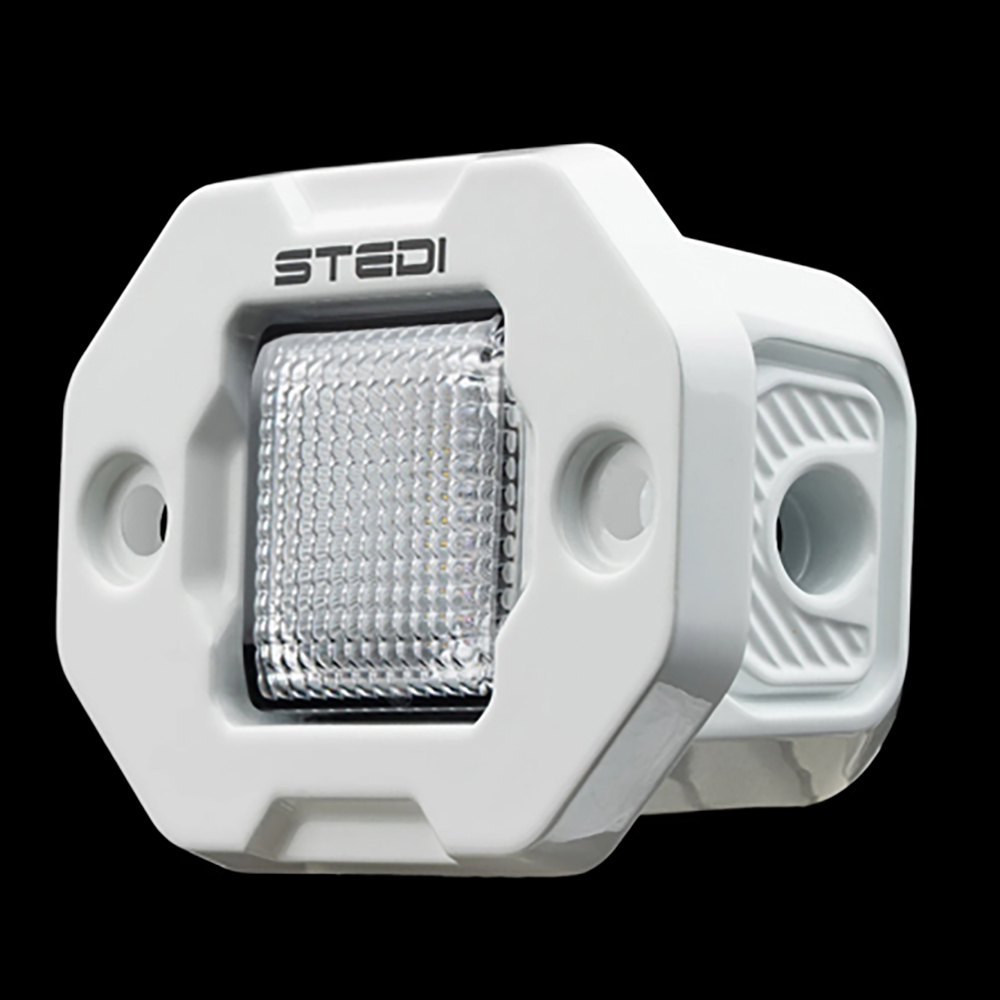

STEDI G1 Marine Flush Work Light - ST-07-G1-002
Brand: STEDI Lights
Product ID: 59846
SKU: ST-07-G1-002
$59.00 (Each)
Supply Only Price.
Estimate Shipping

Flush Fit & Finish.
Engineered for a flush, factory-fit finish, the STEDI™ G1 Marine — Flush delivers immense power in an incredibly compact form factor, excelling in external maritime applications with an isolated earth, 316 stainless steel fasteners and bracket, tinned cabling, and heavy duty marine-grade powder coating.

Blinding Performance.
Engineered with advanced CREE XP-L2 LED technology, the G1 Marine — Flush produces a smooth light beam that reaches over 18m in length, while the optimised flood reflector and lens radiate a wide zone of 21m — ensuring the critical near field is illuminated with a full, 5700K light.

A Force Of Nature.
The STEDIâ„¢ G Series delivers unmatched durability with an IP69K rating for complete dust and waterproof protection and CISPR 25 C3 certification to prevent electromagnetic interference, ensuring peak performance even in the harshest environments.

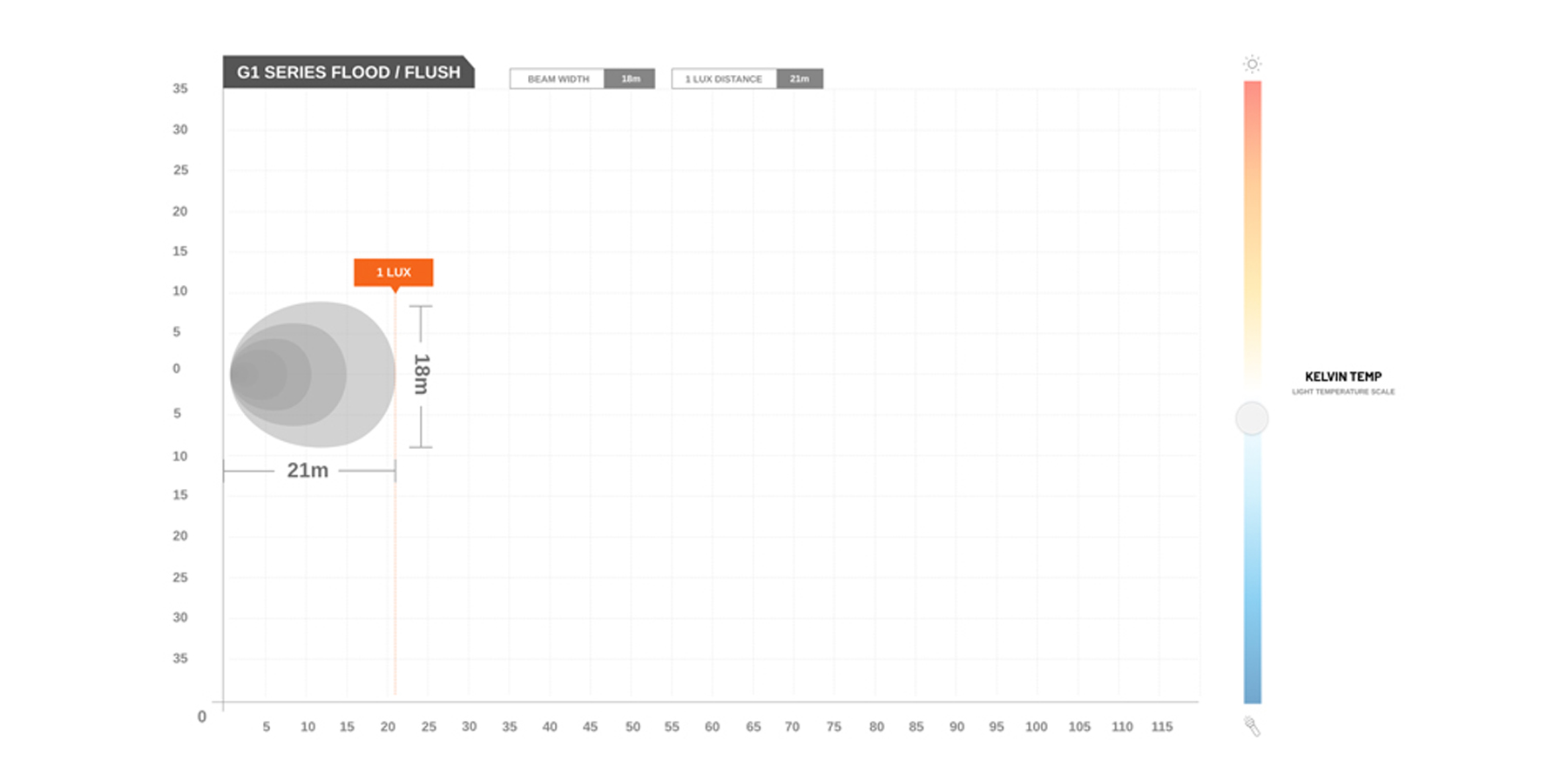

LUX GRAPH

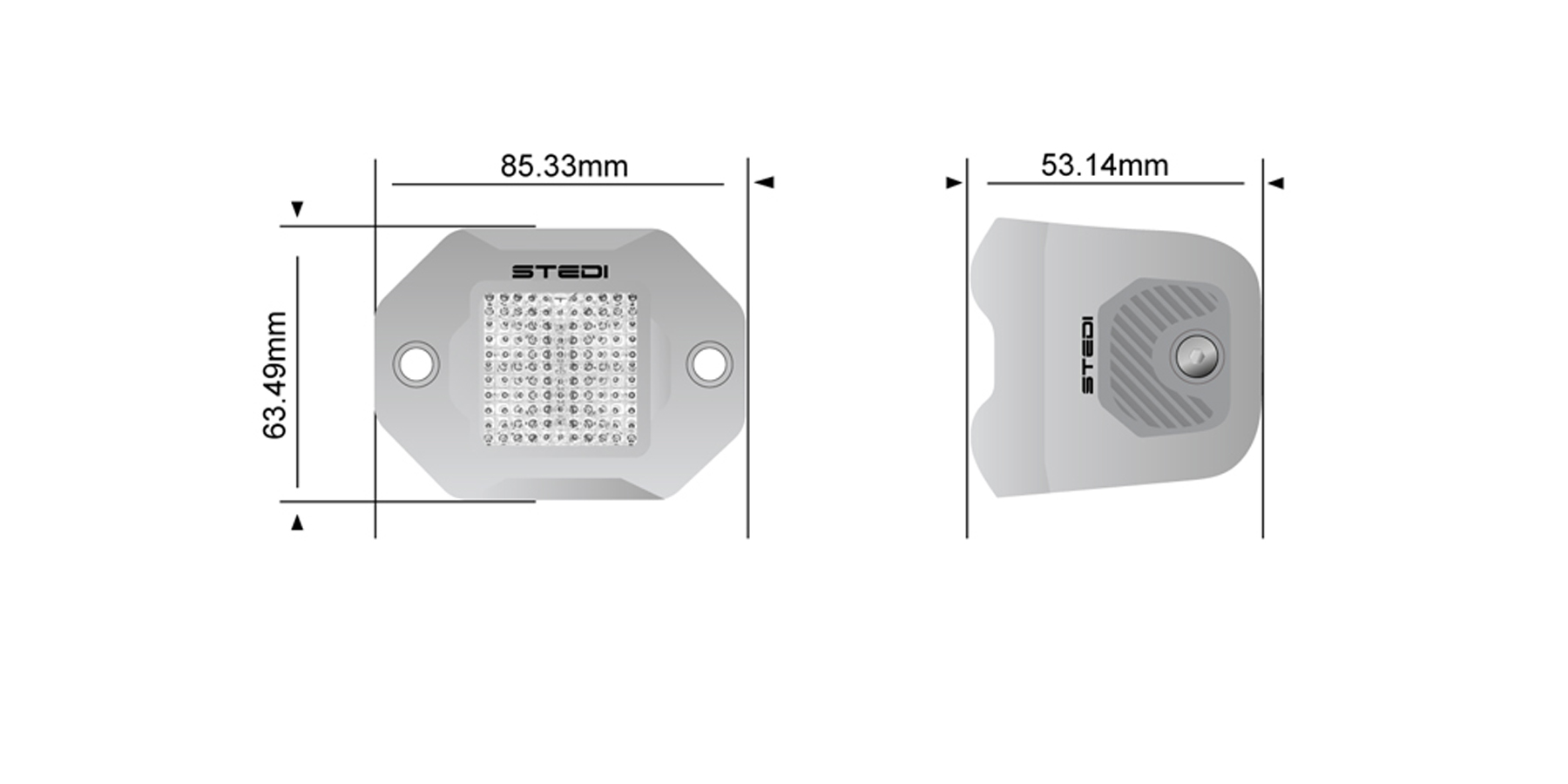

DIMENSIONS

THE NITTY-GRITTY.
Engineered for a flush, factory-fit finish, the G1 — Marine Flush delivers immense power in an incredibly compact form factor. With an almost endless list of uses, the G1 — Marine Flush excels in external maritime applications with an isolated earth, 316 stainless steel fasteners and bracket, tinned cabling, and heavy duty marine-grade powder coating achieving the highest IP69K rating and CISPR 25 C3 certification. ??Engineered with advanced CREE XP-L2 LED technology, the G1 Marine — Flush produces a smooth light beam that reaches over 18m in length, while the optimised flood reflector and lens radiate a wide zone of 21m — ensuring the critical near field is illuminated with a full, 5700K light. The colour temperature has been enhanced to deliver a brilliant white light while reducing glare and eye strain, ensuring you can focus on the task at hand without compromise. ??Pushed to the limit, the STEDI™ G Series sets a new standard in marine light durability. Punished through advanced vibration and shock testing, the entire G-Series achieves the highest possible IP69K rating — guaranteeing that each light is completely dust-proof and waterproof even in high-pressure and temperature environments. The CISPR 25 C3 certification ensures electromagnetic interference is suppressed, protecting sensitive onboard receivers like AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. When it comes to durability, the G-Series is in a class of its own.
- 1x CREE XP-L2 LED
- IP69K Rated
- CISPR 25 C3 Certified
- Shock tested at over 30Gs of Force & Vibration tested at over 5Gs of force for over 30 hours over 3 axis of motion
- 1 LUX @ 18m Length
- 1 LUX @ 21m Width
- Stainless Steel Hardware & Bracket Included
- Tinned Cabling
- Isolated Earth
- Heavy Duty Marine-Grade Powder Coat
TECH SPECS
| LED POWER OUTPUT | 1 x 10w LED |
|---|---|
| LUMENS RAW | 1000LM |
| LUMENS TESTED | 750LM |
| OPERATING VOLTAGE | 12v & 24v Compatibility |
| IP RATING | IP69K |
| CISPR RATING | R25 C3 |
| LED | CREE XP-L2 |
| 1 LUX (METRES) | 21mtrs |
| COLOUR TEMPERATURE (CCT) | 5700K |
| MATERIAL | Die Cast Aluminium Housing |
| LENS | Polycarbonate |
| BOLTS AND FITTINGS | Included |
| BEAM TYPE | Flood |
| LIFE SPAN | 50,000 Hours |
| AMP DRAW | 0.8A @ 13.5v |
| WEIGHT | 0.260kg |

WHAT'S INCLUDED
- 1 x STEDIâ„¢ G1 Marine Flush Light
- 1 x Stainless Steel Hardware
- 1 x Stainless Steel Bracket
